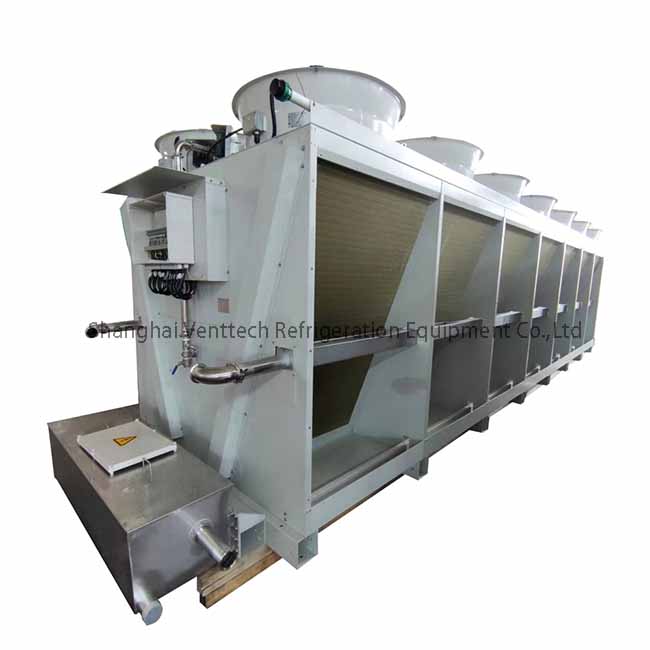

Oil Immersion Cooling System Dry Cooler

Features
Technical Data
Application

Air discharge direction
Performance ranges	Cooling capacity: from 5 to 649 kw Air volume: from 2828 to 263503 m3/h Sound pressure level: from 31 to 69 dB A(10m) Dry coolers:customized on demand
High efficiency heat exchanger	Capacity designs for maximizing the heat transfer relative to the energy consumption of the fan. Tube and tube coupling design for low pressure drop in the coil on the media sides(maximum 100KPa at water designing condition). Our thermodynamic and aerodynamic designing software is long year tested and proved in Germany
Fan	Only choose low specific energy consumption fans. Fan nozzle designs for maximum air flow and air throw. Our fans from the world`s leading manufacturer are practically proved to be reliable in operation and long lasting. Motor: protection class IP 54 and insulation class F. Voltage：400V/3N/50Hz Air separator for each fan.
Testing	Heat exchangers are supplied clean and tested at a pressure of 30 bars
Options	Coil design refrigerant: water, oil, glycol. Multiple circuits. Sub-cooling circuits. Stainless steel or aluminum casing. Coated aluminum or copper fins. Explosion ploof motor. Customized fin spacing.

Dry cooler SHSL-D1 series parameter(fin space 2.1mm)

Type							SHSL-D1-005-1x350	SHSL-D1-006-1x350	SHSL-D1-007-1x350	SHSL-D1-009-1x450	SHSL-D1-011-1x450	SHSL-D1-013-1x450	SHSL-D1-014-1x500	SHSL-D1-017-1x500	SHSL-D1-020-1x500
Capacity	Water	35℃ outdoor temp.	Inlet	45℃,	△	KW	4.89	5.90	6.83	9.39	10.99	13.33	14.32	17.01	19.80
			outlet	40℃	Y
	20% Glycol		Inlet	45℃	△		4.72	5.69	6.69	8.90	10.61	13.05	13.91	16.11	19.29
			outlet	40℃	Y
Medium		Water flow				M3/h	0.85	1.03	1.20	1.63	1.91	2.30	2.50	3.00	3.50
		Pressure drop				kPa	36.00	31.00	58.00	25.00	40	80	50	60	40
Air flow					△	M3/h	2828	2712	2492	6199	5827	5225	8469	8168	7601
					Y
Fan motor					Phase		1	1	1	3	3	3	3	3	3
					△	W	140	140	140	540	540	540	830	830	830
					Y
					△	A	0.60	0.60	0.60	1.10	1.10	1.10	1.45	1.45	1.45
					Y
Fan					No X φ		1x1x350	1x1x350	1x1x350	1x1x450	1x1x450	1x1x450	1x1x500	1x1x500	1x1x500
Sound pressure level					△	dB(A)	31	31	31	43	43	43	49	49	49
					Y	10m
Dimension					L	mm	870	870	870	1020	1020	1020	1220	1220	1220
					W	mm	525	525	525	625	625	625	825	825	825
					H	mm	797	797	797	820	820	820	870	870	870
					A	mm	690	690	690	840	840	840	1040	1040	1040
					B	mm	--	--	--	--	--	--	--	--	--
					C	mm	--	--	--	--	--	--	--	--	--
					D	mm	490	490	490	490	490	490	490	490	490
Inlet φ						mm	3/4”	3/4”	3/4”	1”	1”	1”	1-1/4”	1-1/4”	1-1/4”
Inlet φ						mm	3/4”	3/4”	3/4”	1”	1”	1”	1-1/4”	1-1/4”	1-1/4”
Product weight(empty)						kg	38	42	48	55	60	67	75	82	91

Type							SHSL-D1-028-1x630	SHSL-D1-034-1x630	SHSL-D1-041-1x630	SHSL-D1-058-2x630	SHSL-D1-068-2x630	SHSL-D1-083-2x630	SHSL-D1-106-3x630	SHSL-D1-124-3x630	SHSL-D1-137-4x630
Capacity	Water	35℃ outdoor temp.	Inlet	45℃,	△	KW	28.09	33.62	41.21	58.15	68.48	82.96	105.68	123.65	137.29
	Water		outlet	40℃	Y		23.83	27.87	33.35	49.31	56.77	67.29	88.00	100.23	113.90
	20% Glycol		Inlet	45℃	△		26.76	32.42	40.26	56.39	66.53	80.66	102.54	120.23	133.30
	20% Glycol		outlet	40℃	Y		22.71	26.90	32.61	47.84	55.20	65.48	85.44	97.54	110.66
Medium		Water flow				M3/h	5.00	6.00	7.20	10.00	12.00	14.50	18.40	21.50	24.00
Medium		Pressure drop				kPa	50	46	82	85	73	49	70	47	70
Air flow					△	M3/h	19029	18289	16864	38056	36576	33728	54861	50593	73152
Air flow					Y	M3/h	14664	13945	12817	29327	27889	25633	41830	38450	55777
Fan motor					Phase		3	3	3	3	3	3	3	3	3
					△	W	2750	2750	2750	5500	5500	5500	8250	8250	11000
					Y	W	1750	1750	1750	3500	3500	3500	5250	5250	7000
					△	A	5.10	5.10	5.10	10.2	10.2	10.2	15.3	15.3	20.4
					Y	A	3.00	3.00	3.00	6.00	6.00	6.00	9.00	9.00	12.00
Fan					No X φ		1x1x630	1x1x630	1x1x630	2x1x630	2x1x630	2x1x630	3x1x630	3x1x630	2x2x630
Sound pressure level					△	dB(A)	59	59	59	61	61	61	63	63	64
Sound pressure level					Y	10m	52	52	52	54	54	54	56	56	57
Dimension					L	mm	1580	1580	1580	2880	2880	2880	4180	4180	2930
					W	mm	1085	1085	1085	1085	1085	1085	1085	1085	2100
					H	mm	920	920	920	920	920	920	920	920	1070
					A	mm	1340	1340	1340	--	--	--	--	--	--
					B	mm	--	--	--	1340	1340	1340	1340	1340	1340
					C	mm	--	--	--	1300	1300	1300	1300	1300	1300
					D	mm	640	640	640	640	640	640	640	640	640
Inlet φ						mm	1-1/2”	1-1/2”	1-1/2”	2”	2”	2”	2-1/2”	2-1/2”	2-1/2”
Inlet φ						mm	1-1/2”	1-1/2”	1-1/2”	2”	2”	2”	2-1/2”	2-1/2”	2-1/2”
Product weight(empty)						kg	132	138	156	237	261	303	379	444	540

Type							SHSL-D1-166-4x630	SHSL-D1-211-6x630	SHSL-D1-247-6x630	SHSL-D1-286-8x630	SHSL-D1-334-8x630	SHSL-D1-360-10x630	SHSL-D1-415-10x630	SHSL-D1-502-12x630	SHSL-D1-565-14x630	SHSL-D1-649-16x630
Capacity	Water	35℃ outdoor temp.	Inlet	45℃,	△	KW	165.92	211.36	247.3	286.15	334.49	359.72	415.31	502.25	565.18	649.48
	Water		outlet	40℃	Y		134.59	176.00	200.45	238.3	270.889	298.57	335.225	405.20	459.3	527.59
	20% Glycol		Inlet	45℃	△		161.32	205.08	240.46	280.05	327.72	351.3	406.48	493.40	554.21	638.44
	20% Glycol		outlet	40℃	Y		130.96	170.87	195.07	233.18	265.64	291.81	328.48	398.45	450.87	519.13
Medium		Water flow				M3/h	29.00	37	43	50	58	63	72	88	98	113
Medium		Pressure drop				kPa	50	70	47	97	95	92	70	97	96	95
Air flow					△	M3/h	67455	109723	101185	146293	134908	179502	164442	197326	230584	263503
Air flow					Y	M3/h	51265	83661	76900	111544	102528	136437	124680	149612	174710	199665
Fan motor					Phase		3	3	3	3	3	3	3	3	3	3
					△	W	1100	16500	16500	22000	22000	27500	27500	33000	38500	44000
					Y	W	700	10500	10500	14000	14000	17500	17500	21000	24500	28000
					△	A	20.4	30.6	30.6	40.8	40.8	51.00	51.00	61.20	71.40	81.60
					Y	A	12.00	18.00	18.00	24.00	24.00	30.00	30.00	36.00	42.00	48.00
Fan					No X φ		2X2X630	2x3x630	2x3x630	2x4x630	2x4x630	2x5x630	2x5x630	2x6x630	2x7x630	2x8x630
Sound pressure level					△	dB(A)	64	66	66	67	67	68	68	68	69	69
Sound pressure level					Y	10m	57	59	59	60	60	61	61	61	62	62
Dimension					L	mm	2930	4230	4230	5530	5530	6830	6830	8130	9430	10730
					W	mm	2100	2100	2100	2100	2100	2100	2100	2100	2100	2100
					H	mm	1070	1070	1070	1070	1070	1120	1120	1120	1120	1120
					A	mm	--	--	--	--	--	--	--	--	--	--
					B	mm	1340	1340	1340	1340	1340	1340	1340	1340	1340	1340
					C	mm	1300	1300	1300	1300	1300	1300	1300	1300	1300	1300
					D	mm	640	640	640	640	640	640	640	640	640	640
Inlet φ						mm	3”	3”	3”	DN100	DN100	DN100	DN125	DN125	2XDN125	2XDN125
Inlet φ						mm	3”	3”	3”	DN100	DN100	DN100	DN125	DN125	2XDN125	2XDN125
Product weight(empty)						kg	658	689	760	1105	1270	1320	1420	1584	1848	2112

Note: Standard SHSL-D1 dry cooler is vertical air discharge, for horizontal air discharge please add “H” in nomenclature, for excmple:SHSL-D1-005H-1X350。

Industrial field: process engineering, heat / power plant, power generation, chemical industry, air conditioning chiller, heat transformer, smelting, etc.. It is suitable for all equipment which needs heat dissipation and is installed in the open air.
